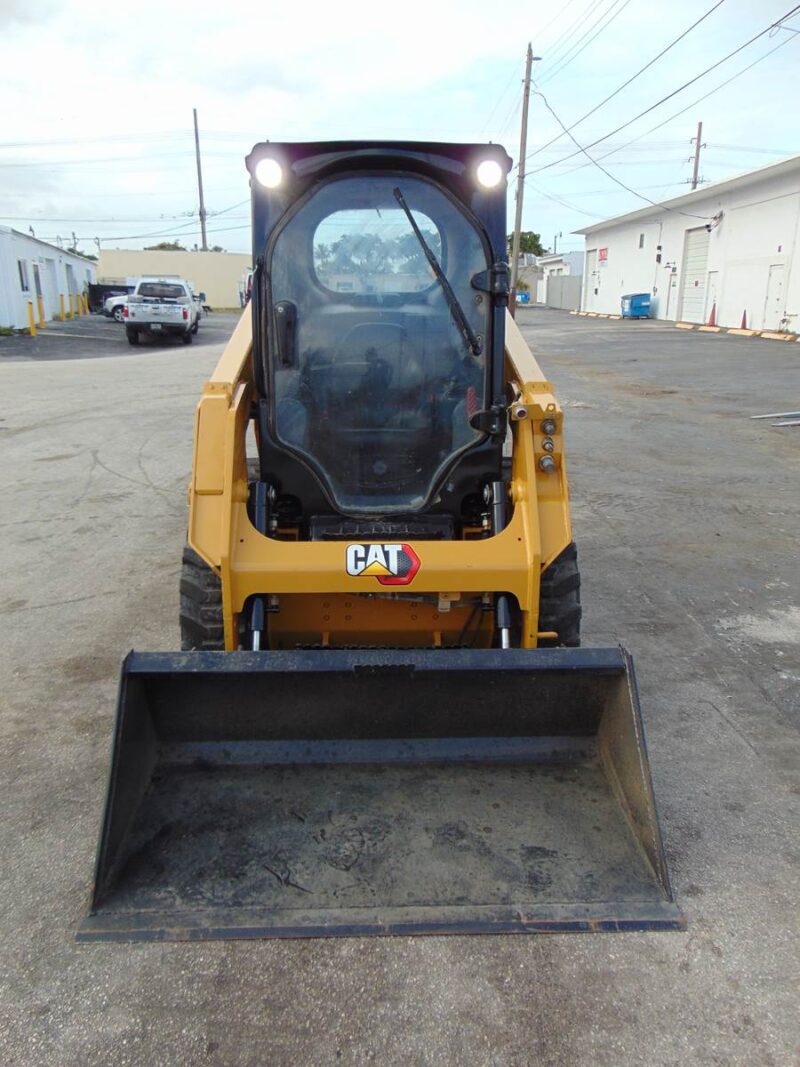

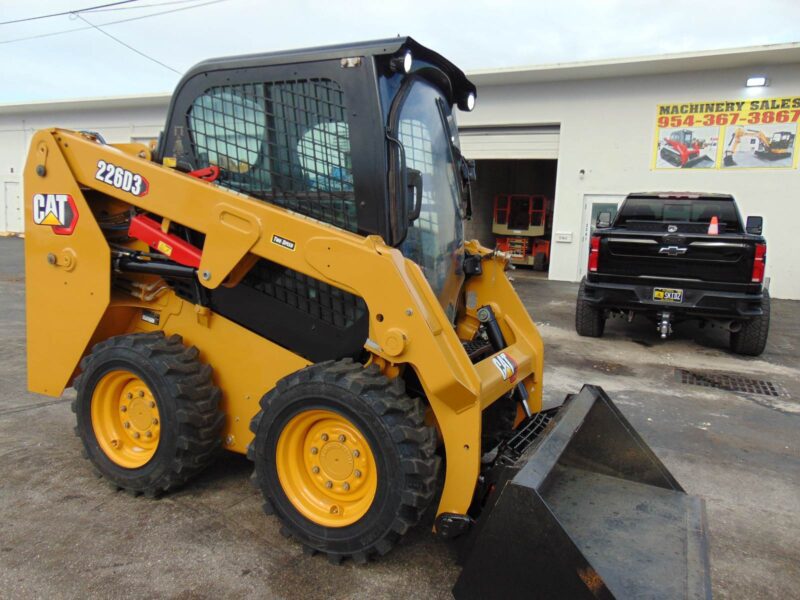

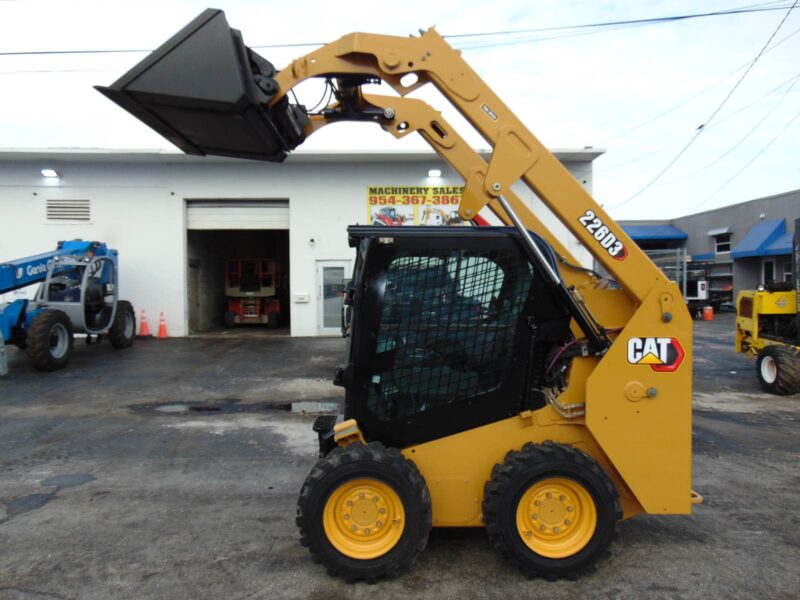

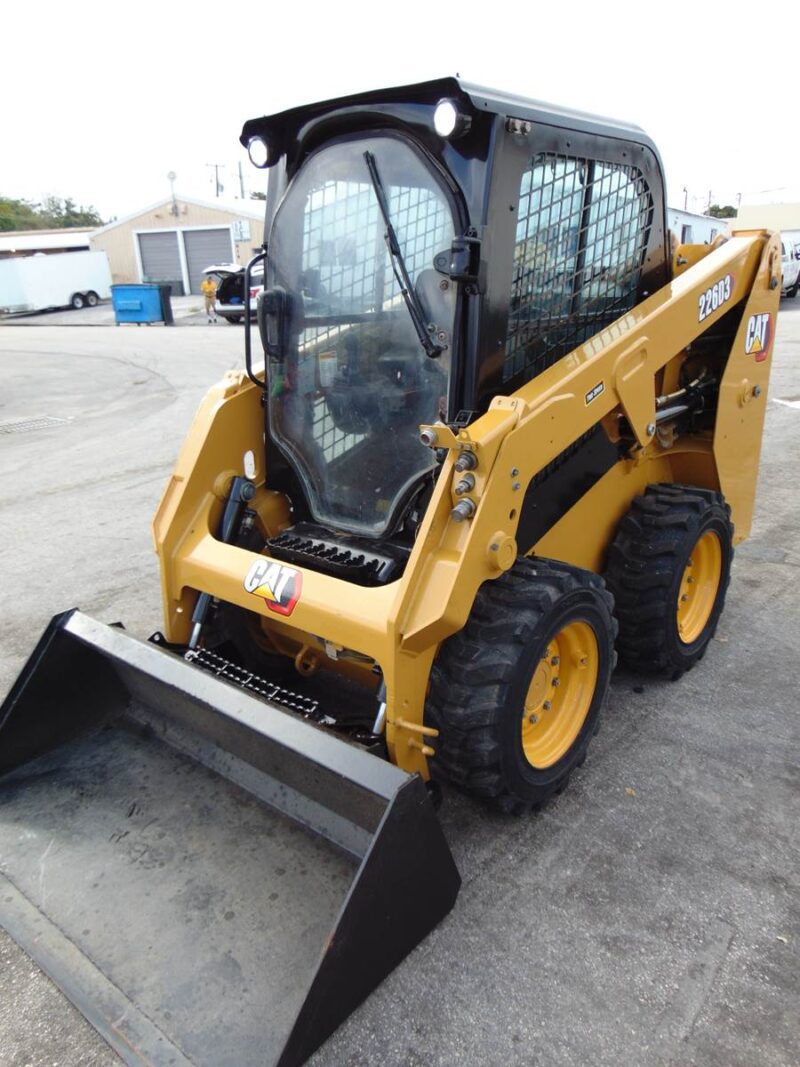

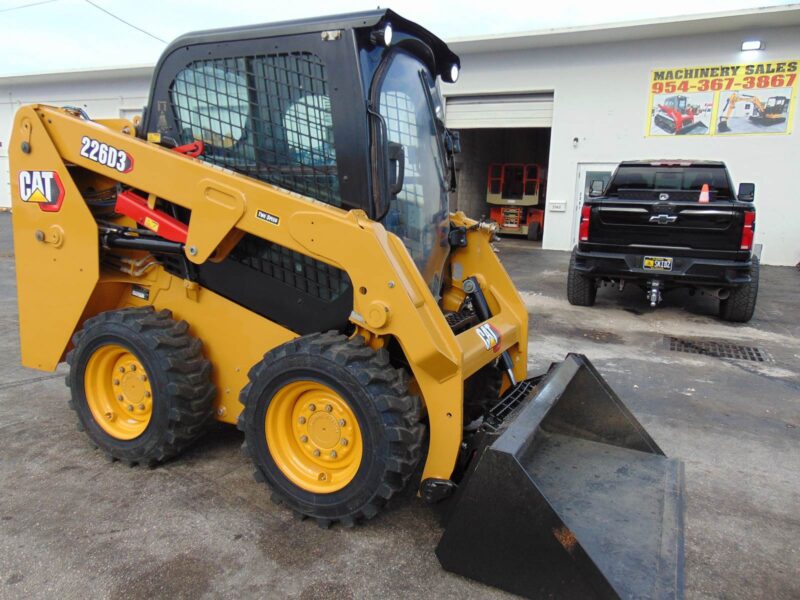

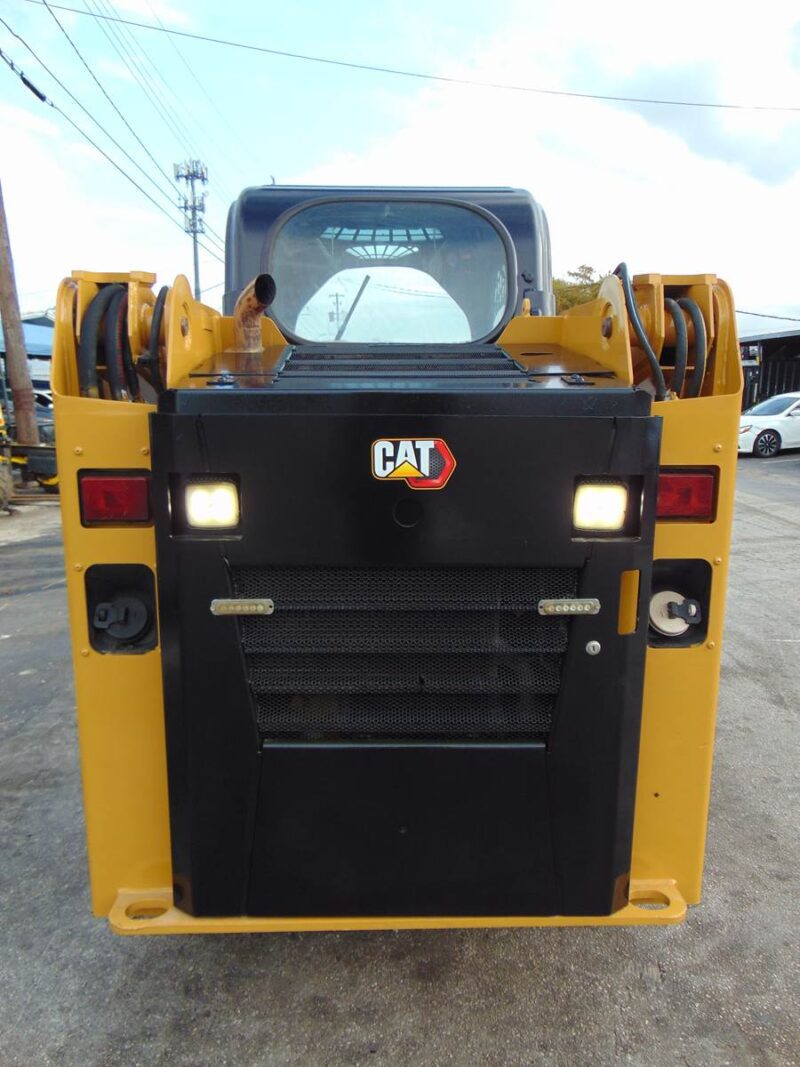

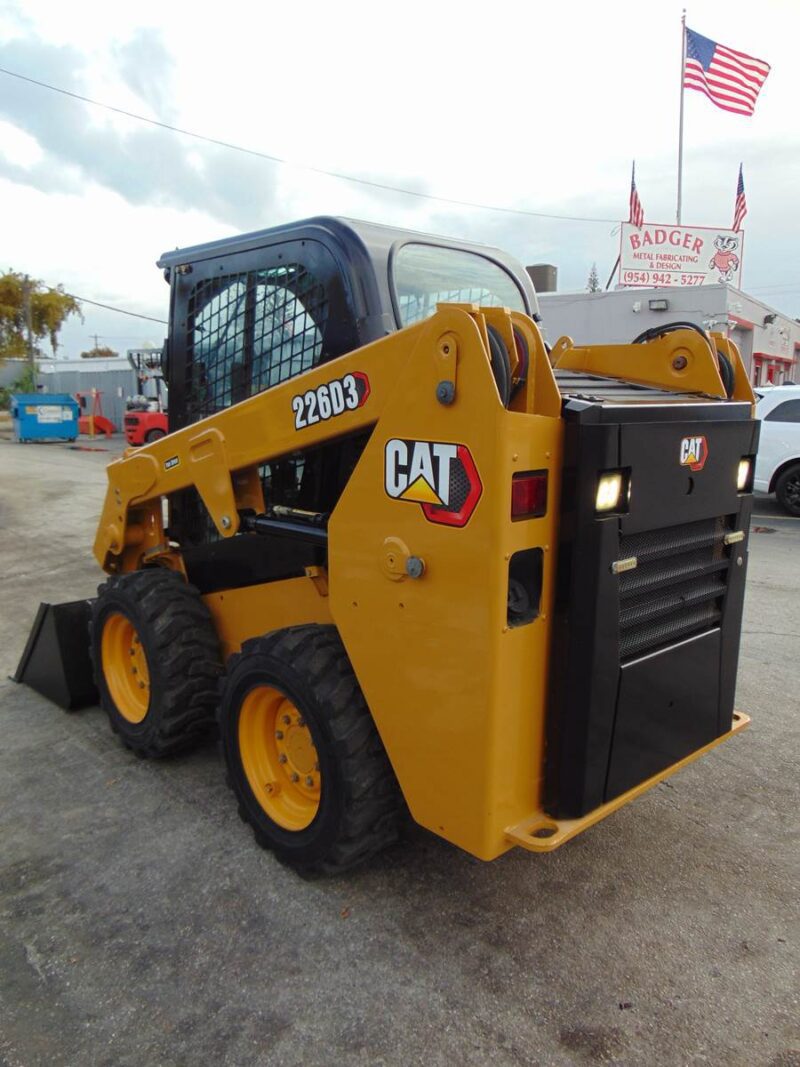

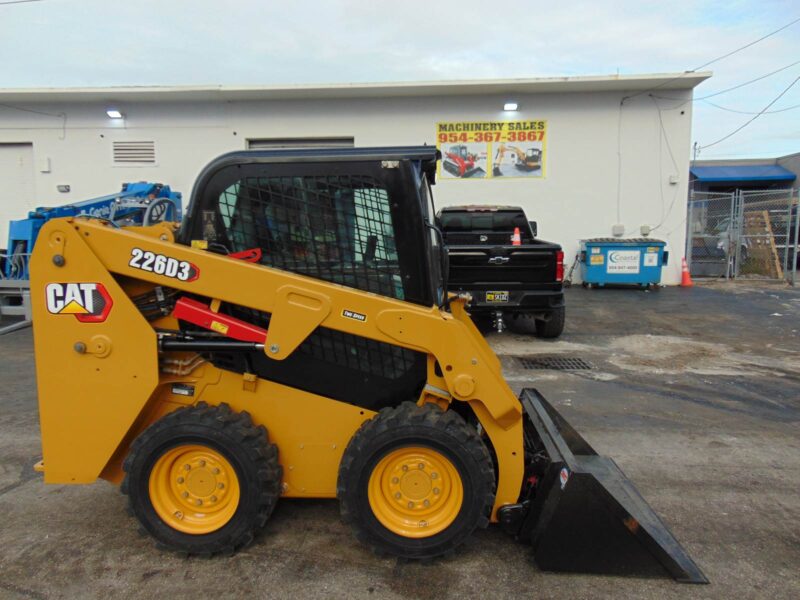

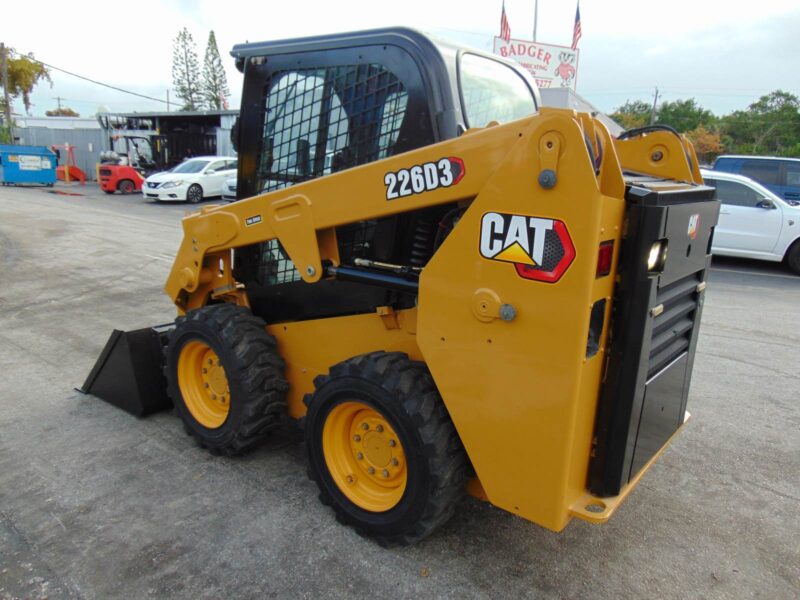

2022 CAT 226D3 – TURBO
ONLY 1,425 HOURS
ONLY 5,800 LBS
AMAZING 3,100 LB TIPPING LOAD
ONLY 58″ WIDE
BRAND NEW 60″ $1,600 G.P. BUCKET INCLUDED W/ CUTTING EDGE

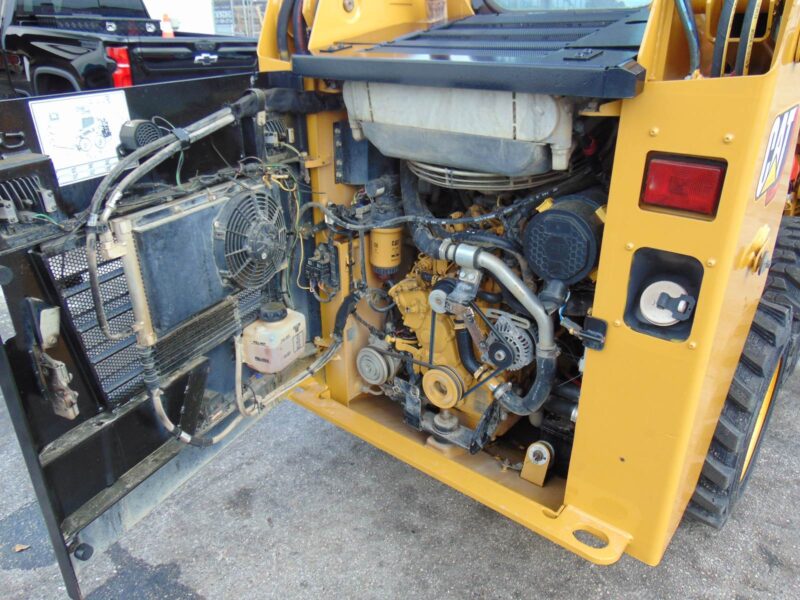

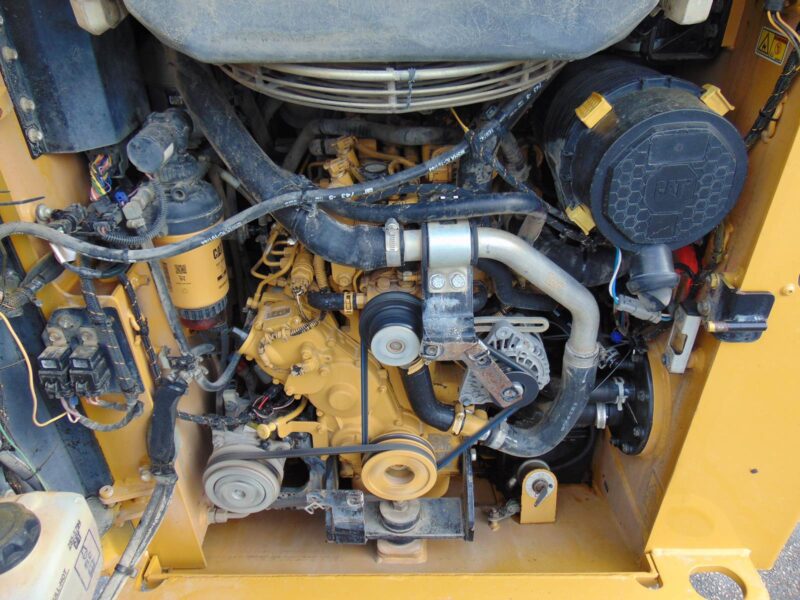

IMPRESSIVE 67 HP DIRECT INJECTION DIESEL

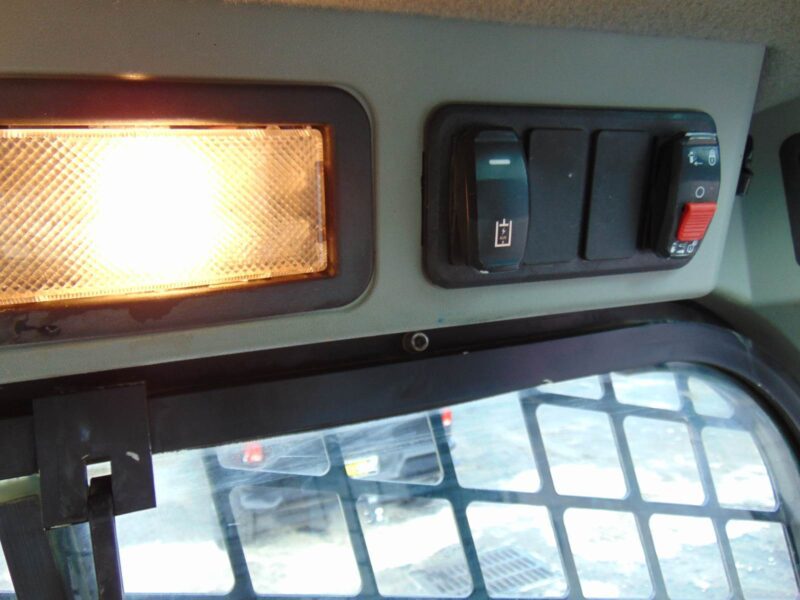

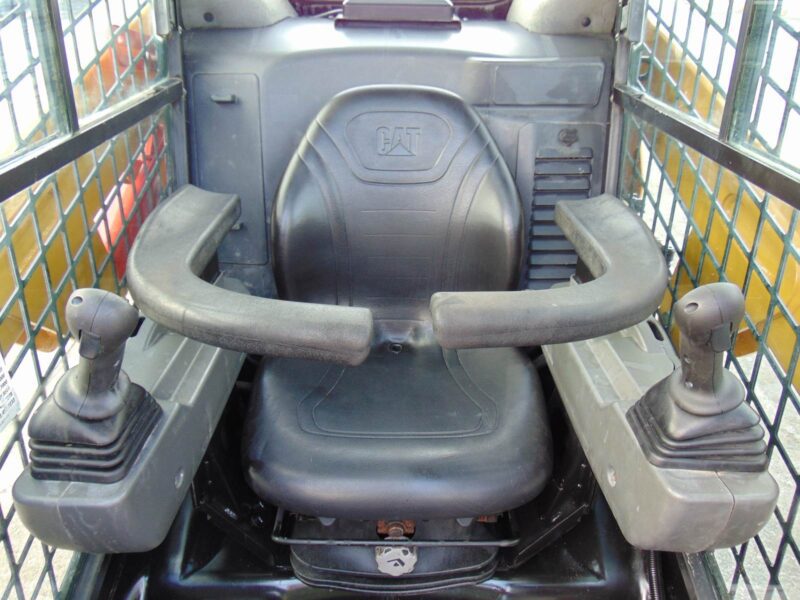

ENCLOSED AIR CONDITIONED AND HEATED COMFORT CAB

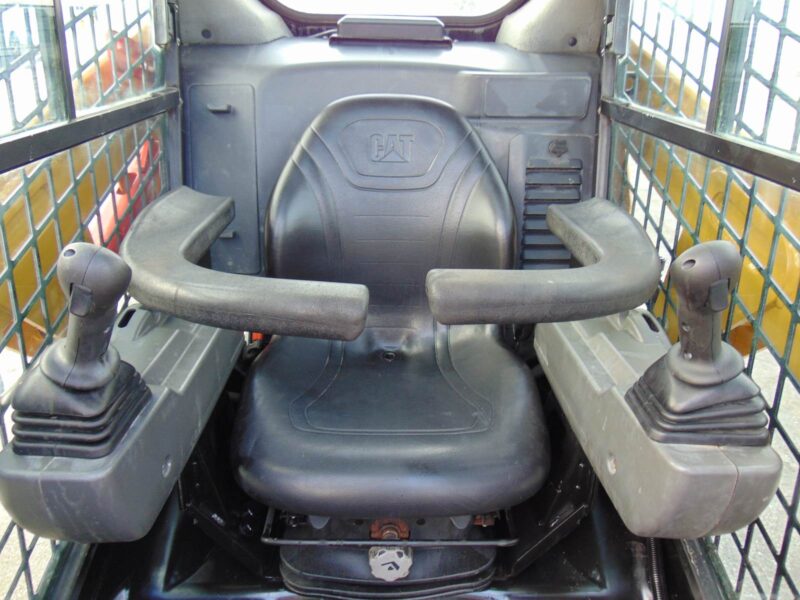

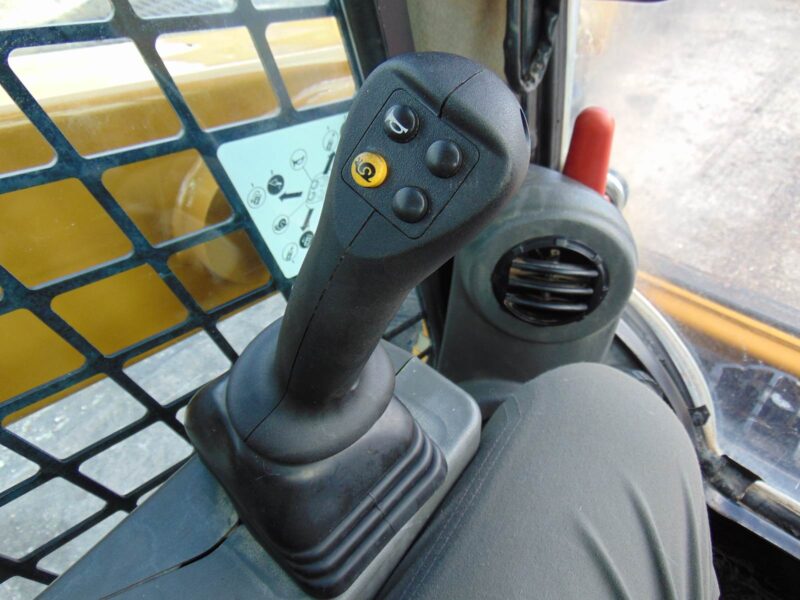

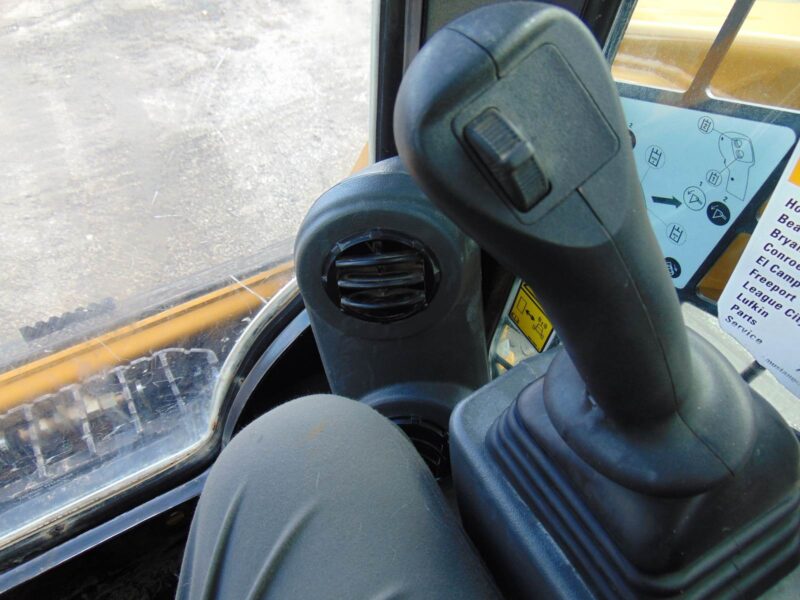

JOYSTICK CONTROLS
BRAND NEW CAMSO ALL TERRAIN 12 PLY TIRES
POWER COUPLER
EVERYTHING SERVICED AND INSPECTED TODAY
100% JOB READY
HARD TO FIND MODEL
226D3 Skid Steer Loader
Starting at $60,124
The pricing shown utilizes the Manufacturer’s Suggested Retail Price (MSRP) that is published for the machine (without any attachments or protection plans). The actual prices and terms and conditions of sale for all products are to be solely determined by Cat.
SPECS SUMMARY
Gross Power – SAE J1995:2014 67.1 hp (50.1 kW)
Rated Operating Capacity 1550 lb (705 kg)
Operating Weight 5849 lb (2653 kg)
Net Power – SAE 1349 65.8 hp (49.1 kW)
The Cat® 226D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
Specifications
Benefits and Features
Standard / Optional Equipment
Compare
Specifications
Gross Power – SAE J1995:2014 67.1 hp (50.1 kW)
Rated Operating Capacity 1550 lb (705 kg)
Operating Weight 5849 lb (2653 kg)
Net Power – SAE 1349 65.8 hp (49.1 kW)
Displacement 134.3 in³ (2.2 l)
Stroke 3.9 in (100 mm)
Bore 3.3 in (84 mm)
Rated Operating Capacity with Optional Counterweight 1650 lb (750 kg)
Tipping Load 3100 lb (1410 kg)
Breakout Force – Tilt Cylinder 3927 lb (1781 kg)
Wheel Base 41.5 in (1054 mm)
Length – With Bucket on Ground 127.3 in (3234 mm)
Length – Without Bucket 99.4 in (2524 mm)
Height – Top of Cab 79.8 in (2028 mm)
Vehicle Width over Tires 58.9 in (1497 mm)
Maximum Overall Height 143.8 in (3652 mm)

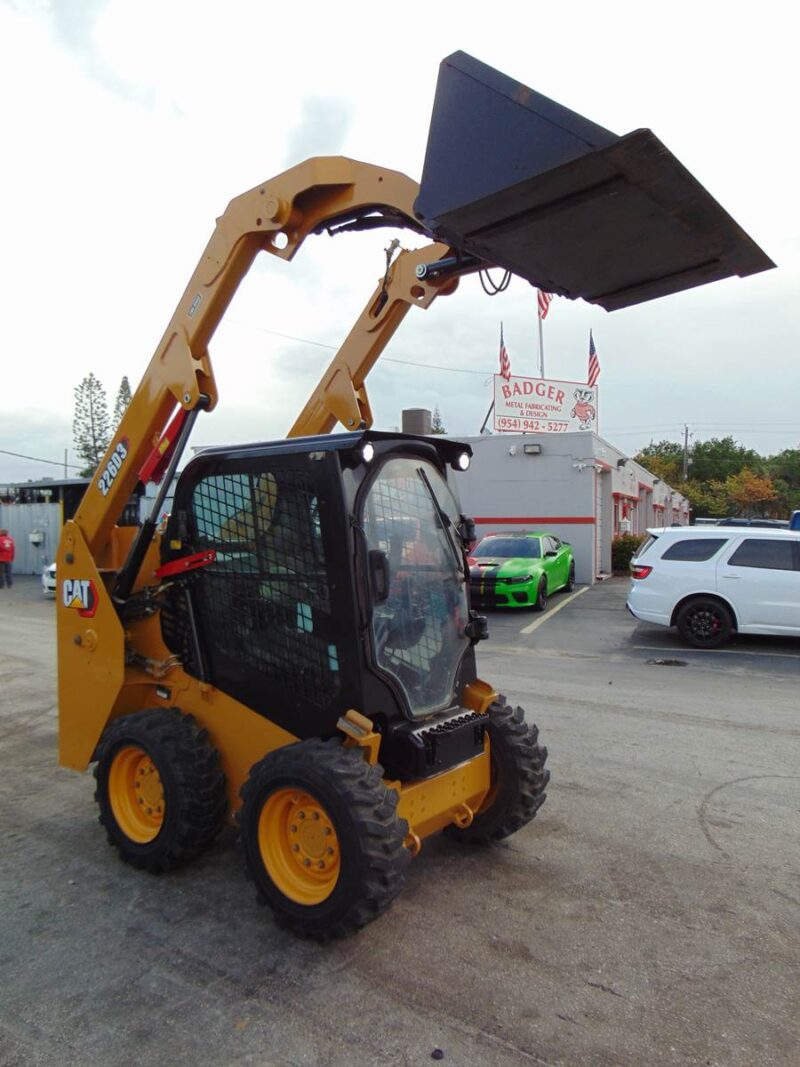

Bucket Pin Height – Maximum Lift 110.9 in (2818 mm)
Bucket Pin Height – Carry Position 8.5 in (215 mm)
Reach – Maximum Lift/Dump 21 in (533 mm)
Clearance at Maximum Lift and Dump 81.8 in (2077 mm)
Ground Clearance 6.9 in (175 mm)
Departure Angle 27.9°
Maximum Dump Angle 46.7°
Rack Back Angle – Maximum Height 88.9°
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
Chain Box – Each Side 1.8 gal (US) (7 l)
Cooling System 3.2 gal (US) (12 l)
Engine Crankcase 2.6 gal (US) (10 l)
Fuel Tank 15.1 gal (US) (57 l)
Hydraulic System 11.9 gal (US) (45 l)
Hydraulic Tank 9 gal (US) (34 l)
Peak Torque – 1,500 rpm – SAE J1995 153 ft·lbf (208 N·m)

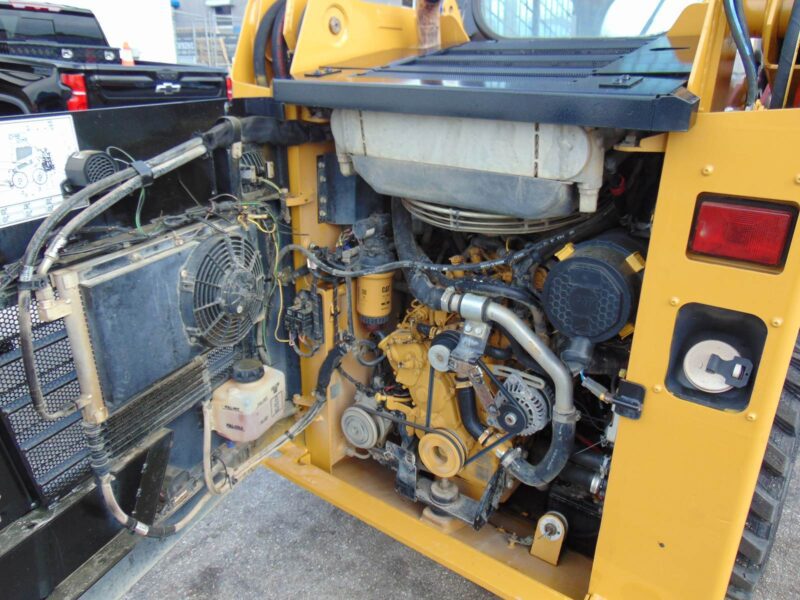

Engine Model Cat C2.2 CRDI
Note * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Net Power – ISO 9249 66.5 hp (49.6 kW)
Note * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Inside Cab** 83 dB(A) (83 dB(A))
Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Outside Cab*** 102 dB(A) (102 dB(A))
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow 26 gal/min (99 l/min)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Travel Speed – Forward or Reverse – Two Speed Option 11.1 mile/h (17.8 km/h)
Travel Speed – Forward or Reverse – One Speed 7.6 mile/h (12.3 km/h)
Hydraulic Flow – Standard – Loader Hydraulic Flow 18 gal/min (69 l/min)
Hydraulic Flow – High Flow – Hydraulic Power (Calculated) 50.9 hp (38 kW)
Hydraulic Flow – Standard – Hydraulic Power (Calculated) 33.5 hp (26.5 kW)
Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure 3336 psi (23000 kPa)
Hydraulic Flow – Standard – Loader Hydraulic Pressure 3336 psi (23000 kPa)
Note * Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Turning Radius from Center – Coupler 43.5 in (1104 mm)
Turning Radius from Center – Machine Rear 59.6 in (1513 mm)
Maximum Reach – With Arms Parallel to Ground 50.7 in (1288 mm)
Turning Radius from Center – Bucket 77.8 in (1977 mm)
Bumper Overhang – Behind Rear Axle 35.2 in (8944 mm)
